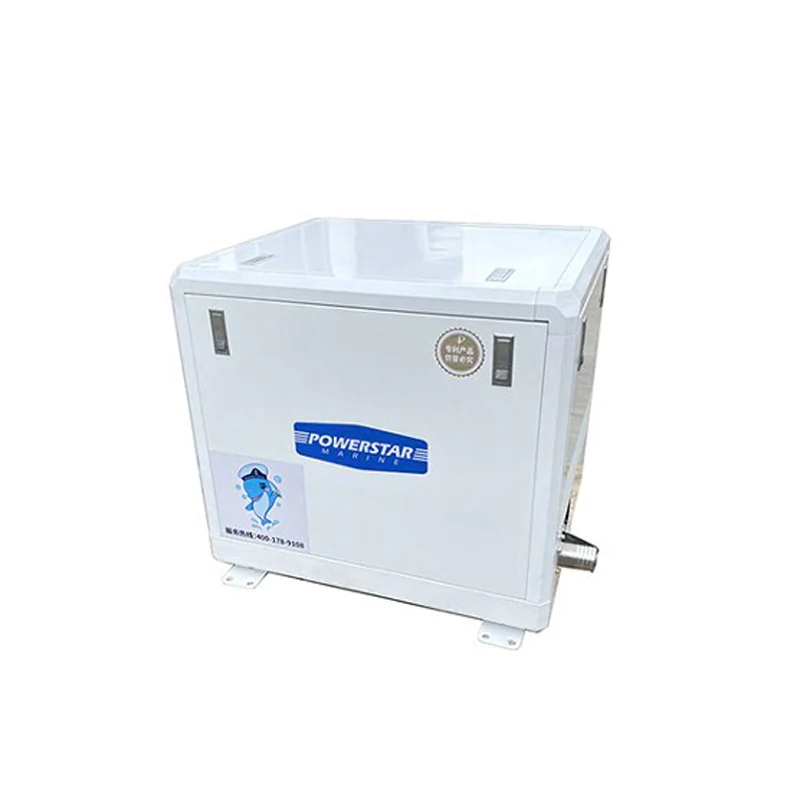

PMG-8SH | 8kW DC Permanent Magnet Marine Generator (PMG Series)

PMG-8SH belongs to our PMG permanent magnet marine generator series, dedicated to marine DC power supply for electric propulsion boats and unmanned surface vessels.
It adopts 2-cylinder naturally aspirated diesel engine, matched with PMG permanent magnet alternator to output stable DC 48-96V power. Compact size and light weight make it easy to install on limited onboard space.
It supports remote monitoring via 15m remote cable. Built-in protection system automatically shuts down the unit when detecting high water temperature, low oil pressure or overspeed.
Standard accessories include seawater filter, oil water separator, water intake and muffler. Designed for seawater cooling environment, the unit comes with anti-corrosion treatment against salt spray.
It works as an on-board range extender, charging battery packs continuously for electric boats, unmanned ships and marine robotic equipment. Optional ZC / CCS certificates are available for commercial marine projects.
Note: Specifications are subject to change without notice.

Standard Configuration

• Remote Panel
• 15m Remote Cable
• Sea Water Filter
• Oil Water Separator
• Water Intake
• Muffler
• Self-protection Shutdown: High water temperature, low oil pressure, high speed
