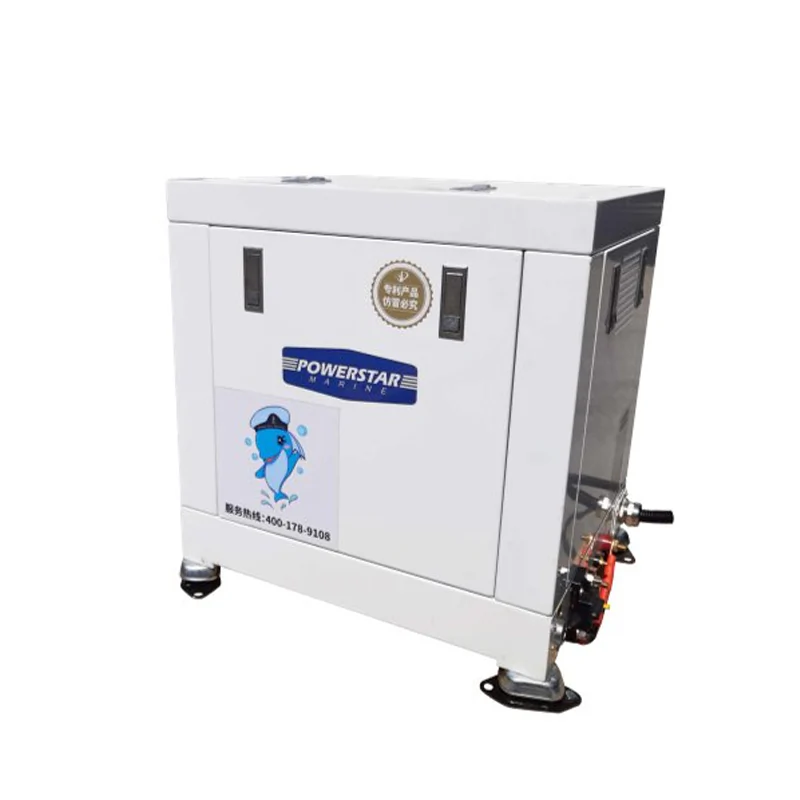

PMG-3.5SH | 3.5kW Compact Permanent Magnet Marine Generator (MINI Series, 50Hz)

Name: PMG-3.5SH | 3.5kW Compact Permanent Magnet Marine Generator (MINI Series, 50Hz)
Brand: Powerstar Marine Generators

Powerstar PMG-3.5SH is a lightweight 3.5kW single-phase permanent magnet marine generator of MINI Series, 3000rpm, 230V 50Hz. Only 100kg with compact size 560473598mm. It comes with remote panel, seawater filter and automatic safety shutdown system, ideal auxiliary power for cruising sailboats and small leisure yachts. ZC & CCS certificates optional.

Request a Quote

Enter the quantity you need and add to your quote list for pricing inquiries.

Quantity:

Categories: PMG Series-50Hz

Description

PMG-3.5SH is our MINI Series permanent magnet marine generator, designed for small vessels with limited engine room space.
Lightweight 100kg compact structure saves installation space on yachts and sailboats. Equipped with permanent magnet alternator for stable voltage and low maintenance.
It supports remote monitoring via 15m remote cable. Built-in protection system automatically shuts down at high water temperature, low oil pressure or overspeed to protect the unit.
Standard accessories include seawater filter, oil water separator, water intake and muffler, suitable for seawater cooling marine environment. Marine anti-salt-spray coating resists offshore corrosion.
It supplies power for air conditioning, fridge, navigation devices and battery charging when the main engine stops. Optional ZC / CCS certificates for commercial marine projects.
Note: Specifications are subject to change without notice.

Category	Item	Parameter
Generator	Rated Output	3.5 kW
Generator	Voltage	230 V
Generator	Phase	Single-phase
Generator	Frequency	50 Hz
Generator	Revolution	3000 rpm
Generator	Net Weight	100 kg
Generator	Dimension	560473598 mm
Alternator	Frequency	50 Hz
Alternator	Voltage	230 V
Alternator	Power	5 kW
Diesel Engine	Output	6.8 kW
Diesel Engine	Revolution	3000 rpm
Diesel Engine	Cylinder	1
Diesel Engine	Aspiration	Self-priming
Diesel Engine	Bore	88 mm
Diesel Engine	Stroke	75 mm
Diesel Engine	Weight	50 kg
Controller	Working Voltage	8.0V-35.0V DC Continuous power supply
Controller	Power Consumption	＜3W (Standby ≤ 2W)
Controller	Overall Dimension	135mm110mm44mm
Controller	Installation Cutout	116mm*90mm
Installation	Exhaust Pipe	45 mm
Installation	Water Inlet Pipe	20 mm
Installation	Oil Inlet Pipe	8 mm
Installation	Oil Return Pipe	8 mm
Installation	Recommended Battery Capacity	100 AH
